The most sensible starting point for Tudor MT5402 winder settings is 650 turns per day (TPD) with bidirectional rotation. If your winder offers 750 TPD but not 650, 750 is a reasonable practical choice. This is a starting program, not a factory commandment: Tudor confirms that the MT5402 has a bidirectional rotor and approximately 70 hours of power reserve, but it does not publish a consumer TPD specification on its watch pages.

That distinction matters. Winder databases do not all quote the same number, daily activity varies, and manufacturers count turns differently. A good setup keeps the watch running through your normal rotation without subjecting it to needless motion. The method below explains how to identify the movement, choose a conservative program, test it over several days, and recognize when the real problem is the watch rather than the winder.

Quick MT5402 Setting Recommendation

• Starting TPD: 650
• Rotation direction: Bidirectional, alternating clockwise and counterclockwise
• If 650 is unavailable: Select 700 or 750 TPD
• If the watch loses reserve: Confirm the program and mounting, then increase one step at a time
• Before testing: Give a stopped watch a manual wind according to its instructions

Some published charts recommend 750 TPD for Tudor watches, while others list 650 TPD for the MT5402 specifically. The difference is not a reason to worry. It reflects conservative allowances for winder design, counting method, watch orientation, and individual use. Begin at the lower effective setting and judge the outcome. The goal is maintenance winding, not forcing a fully depleted watch to recover as quickly as possible.

Confirm That Your Watch Actually Uses the MT5402

Do not program a winder from the brand name alone. Tudor has used several manufacture and third-party movements across the Black Bay family, and watches that look related can contain different calibres. The MT5402 is associated with models including the original 39 mm Black Bay Fifty-Eight and the current 39 mm Ranger. Tudor’s Ranger product information identifies Manufacture Calibre MT5402 (COSC), a self-winding mechanical movement with a bidirectional rotor and about 70 hours of reserve.

Reference numbers and production generations are more reliable than assumptions based on dial design. Check the warranty card, official model page, owner documentation, or a service record. If you bought the watch pre-owned, verify its exact reference before trusting a seller’s movement description. A movement swap is uncommon, but an incorrect listing or confused family name is not.

The suffix can matter too. Tudor’s catalogue includes related movements with designations such as MT5400 and METAS-certified variants. Similar architecture does not automatically make every database entry interchangeable. Use the precise calibre when available; otherwise use the exact watch reference and test conservatively.

Why Bidirectional Rotation Is the Right Direction

Tudor explicitly describes the MT5402 as having a bidirectional rotor system. The automatic winding mechanism can therefore collect useful energy as the rotor moves in either direction. On a programmable winder, choose the mode that alternates clockwise and counterclockwise rotation.

Direction labels are viewed from the dial side on most winders, although the distinction is largely academic for this calibre because both directions wind it. Alternating mode also resembles the varied motion the watch encounters on a wrist. A clockwise-only or counterclockwise-only program should still provide winding input to an MT5402, but there is little reason to restrict the program unless a particular machine has no alternating option.

Do not confuse bidirectional winding with continuous rotation. A well-designed winder turns in short cycles and rests for long periods. Those pauses are normal and desirable. Watching the unit for two minutes and finding it stationary does not prove that it is broken; consult its cycle chart and calculate the full 24-hour program.

What 650 TPD Really Means

TPD describes how many complete rotations the holder is intended to make during a day. It is not the number of rotor swings inside the case, and it is not a measure of mainspring tension. The rotor responds to gravity, acceleration, mounting angle, and changes of direction, so two machines displaying the same TPD can deliver slightly different real-world results.

A 650 TPD bidirectional program commonly divides its turns among several sessions. The holder may rotate for a few minutes, stop, reverse later, and repeat that schedule until its daily total is reached. This is why counting one short session and multiplying without understanding the rest periods can produce a misleading number.

The MT5402’s approximately 70-hour reserve gives an owner useful tolerance. Once adequately wound, a healthy watch can be left off the wrist for much of a weekend and still run. A winder does not need to keep the mainspring at its absolute maximum to be successful; it only needs to replace the energy the movement consumes.

How to Test Tudor MT5402 Winder Settings

1. Start with a healthy baseline. If the watch has stopped, manually wind it before the test. A winder is primarily a maintenance device and may take a long time to revive a fully discharged movement.
2. Set 650 TPD and bidirectional rotation. If your machine jumps from 600 to 750, use 750. Avoid selecting a high program merely to shorten the test.
3. Mount the watch securely. The cushion should not slip, the bracelet should not strike the cabinet, and the watch should remain reasonably upright as the holder turns.
4. Leave the program unchanged for three to five days. Mixing wrist wear and winder time during the first trial makes the result difficult to interpret.

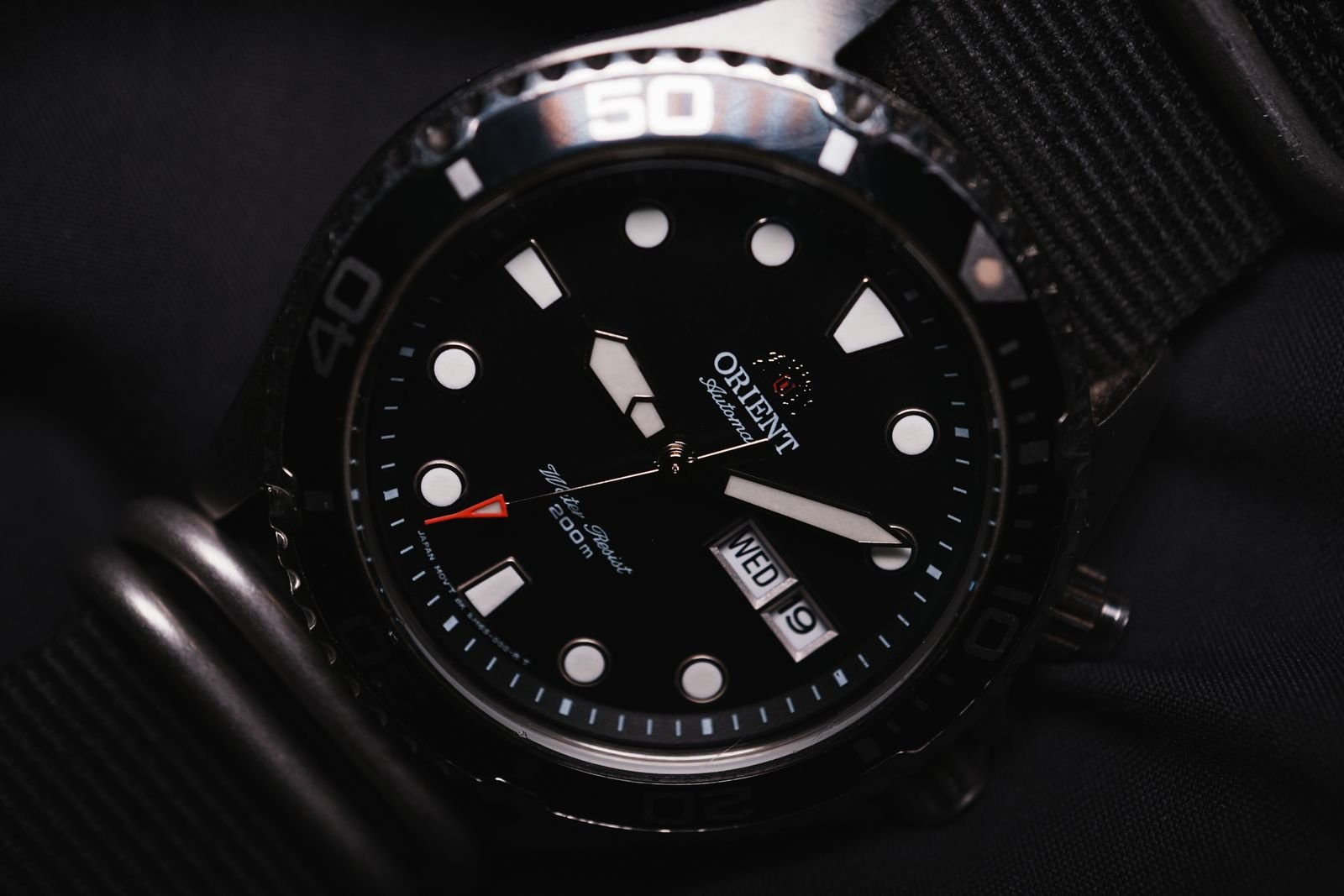

5. Check reserve, not just the seconds hand. After the test period, remove the watch and let it run at rest. If it remains alive for roughly the expected interval, the winder has built substantial reserve.
6. Adjust only one variable. If reserve is inadequate, raise the setting by the smallest available step while keeping bidirectional mode. Repeat the same test.

You do not need to drain the watch completely after every normal use. A controlled reserve test is valuable when establishing a program, but repeatedly running the watch to a stop adds inconvenience without improving daily winding.

If the Watch Stops on the Winder

A stopped watch does not automatically mean that the MT5402 needs a very high TPD setting. Work through the simple possibilities first.

Verify the winder’s actual schedule

Confirm that the selected bay is enabled, the power supply is stable, and the program is not a short demonstration mode. Some controls display turns per cycle rather than turns per day. Others reset after a power interruption. Mark the holder’s position with removable tape and observe it at several points during the day if you suspect the motor is not completing its schedule.

Check the mounting angle and fit

A loose pillow may rotate while the watch sags, reducing useful rotor movement. A holder positioned nearly flat can also be less effective than one that keeps gravity acting across the rotor’s plane. Secure the watch without stretching the bracelet or compressing a leather strap excessively.

Separate winding trouble from movement trouble

Manually wind the watch and measure its off-wrist running time. If it stops far short of its expected reserve even without using the winder, increasing TPD treats the symptom rather than the cause. Poor reserve can result from incomplete manual winding, an overdue service, a slipping or damaged winding component, or another movement fault. A watchmaker can assess amplitude, automatic winding efficiency, and mainspring performance.

Can a Winder Overwind the MT5402?

A functioning modern automatic watch is designed to manage continued rotor activity after reaching a high state of wind. That does not mean more rotation is useful. Excessive TPD adds motor noise, electricity use, and unnecessary operating cycles to the watch and winder without making the watch more accurate or increasing reserve beyond its designed capacity.

Use the lowest setting that reliably maintains the watch in your routine. If 650 TPD works, there is no advantage in selecting 1,500. Also consider whether you need a winder at all. The MT5402’s long reserve and straightforward time-only display make it easy to leave the watch at rest and reset it when worn. A winder is convenient for frequent rotation, but it is not required for the movement’s health.

Practical Settings for Common Situations

• Daily wear with overnight storage: A winder is usually unnecessary. The 70-hour reserve should comfortably bridge one night.
• Alternating between two watches: Begin at 650 TPD bidirectional. Test after several days.
• Winder offers only 750 TPD: Use 750 bidirectional; it is a sensible nearby program.
• Watch enters the winder nearly empty: Wind it manually first rather than selecting maximum TPD.
• Watch still stops at 750 TPD: Check the machine, fit, and off-wrist reserve before increasing again.
• Long-term storage: Keep the watch clean, dry, and protected. Continuous winding is not a substitute for periodic inspection or service.

Frequently Asked Questions

What are the best Tudor MT5402 winder settings?

Start with 650 TPD in bidirectional mode. If your winder does not offer 650, use 700 or 750 TPD. Test the watch over several days and increase only if it fails to maintain adequate reserve.

Does the Tudor MT5402 wind clockwise or counterclockwise?

Both. Tudor describes the MT5402 as using a bidirectional rotor system, so alternating clockwise and counterclockwise rotation is the natural winder setting.

Is 750 TPD safe for a Black Bay 58 or Ranger?

For a confirmed MT5402, 750 TPD bidirectional is a reasonable maintenance setting, especially when 650 is unavailable. The correct practical value is the lowest program that consistently maintains reserve.

Can a watch winder fully charge a stopped MT5402?

It may eventually build reserve, but that is not the best test or routine. Manually wind a stopped watch first, then use the winder to replace the energy consumed during operation.

Why does my Tudor stop even at the recommended setting?

The winder may be completing fewer turns than indicated, the watch may be mounted poorly, or the movement may not be storing or receiving energy efficiently. Measure the manually wound off-wrist reserve before assuming that more TPD is the answer.

Do I need a watch winder for the MT5402?

No. A winder is a convenience for owners who rotate watches frequently. Because the MT5402 is a time-only movement with about 70 hours of reserve, allowing it to stop and resetting it later is simple.

Conclusion

Reliable Tudor MT5402 winder settings are uncomplicated: begin at 650 TPD, select bidirectional rotation, and test instead of chasing the highest number. A 750 TPD program is a practical alternative when the lower setting is unavailable. Confirm the calibre, start with a properly wound watch, and change one variable at a time. If a manually wound MT5402 cannot approach its normal reserve, arrange an inspection rather than asking the winder to conceal the problem.
